vue3.x移动端页面基于vue-router的路由切换动画

2023-05-07 21:42:49

移动端页面切换一般都具有动画,我们既然要做混合开发,做完之后还是不能看起来就像一个网页,所以我们基于vue-router扩展了一个页面切换push和pop的动画。这是一篇比较硬核的帖子,作者花了不少精力来写

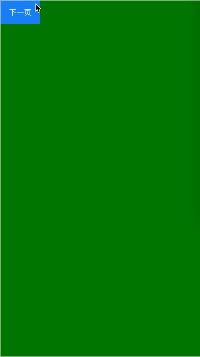

先上效果图


再贴核心代码

router文件夹下,新建transition-extend.js文件,实现如下:

/** * router扩展,页面切换动画 */ // 负责SessionStorage存储路由历史。 const SessionStorage_key_Router_Extend_History = 'SessionStorage_key_Router_Extend_History' function transitionExtend(orgin) { // 通过原路由对象创建一个新的对象 let router = Object.create(orgin) // 扩展对象,保存当前栈数组和过渡动画名称 router.customRouterData = { transitionName: '', history: [] } // 路由位置字符串在数组中的位置 router.indexOf = function (path) { let arrLen = router.customRouterData.history.length for (let i = arrLen - 1; i >= 0; i--) { if (router.customRouterData.history[i] == path) { return i; } } return -1; } // 添加历史路由去路由数组 router.addRouterPath = function(path) { router.customRouterData.history.push(path) sessionStorage.setItem(SessionStorage_key_Router_Extend_History, JSON.stringify(router.customRouterData.history)); } // 历史路由数组移除某个路由,n为参数可以移除多个 router.removeLastRouterPath = function (n = 1) { if (n > 0) { for (let i = 0; i < n; i++) { router.customRouterData.history.pop() } sessionStorage.setItem(SessionStorage_key_Router_Extend_History, JSON.stringify(router.customRouterData.history)); } } // 初始化,为了页面刷新能恢复路由记录等 router.initRouterPaths = function (toPath) { // 当存储了 router paths 时候,读取并赋值 let arrStr arrStr = sessionStorage.getItem(SessionStorage_key_Router_Extend_History); if (arrStr && arrStr != undefined) { let arr = JSON.parse(arrStr) if (Array.isArray(arr) && arr.length > 0) { // 进入页面 router.customRouterData.history = arr; } else { // 新进入页面 router.customRouterData.history = [] router.customRouterData.history.push(toPath) } } else { // 新进入页面 router.customRouterData.history = [] router.customRouterData.history.push(toPath) } // 存储为了恢复 sessionStorage.setItem(SessionStorage_key_Router_Extend_History, JSON.stringify(router.customRouterData.history)); } // push 修改路由历史,并设置动画 router.push = function () { let location = arguments[0] if (typeof location == 'string') { router.addRouterPath(location) } else { router.addRouterPath(location.path) } router.customRouterData.transitionName = 'slide_left' router.__proto__.push.call(this, ...arguments) }; // replace 修改路由历史,并设置动画 router.replace = function () { router.removeLastRouterPath() let location = arguments[0] if (typeof location == 'string') { router.addRouterPath(location) } else { router.addRouterPath(location.path) } router.customRouterData.transitionName = 'slide_left' router.__proto__.replace.call(this, ...arguments) }; // go 修改路由历史,并设置动画 router.go = function (n) { if (n > 0) { // 禁止使用,这种情况比较复杂,使用较少,先忽略 console.error('router.go 暂不支持 前进 !'); return; } router.removeLastRouterPath(-n) router.customRouterData.transitionName = 'slide_right' router.__proto__.go.call(this, n) }; // back 修改路由历史,并设置动画 router.back = function () { router.removeLastRouterPath() router.customRouterData.transitionName = 'slide_right' router.__proto__.go.call(this, -1) }; router.forward = function () { // 禁止使用,这种情况比较复杂,使用较少,先忽略 console.error('router.forward 暂不支持 !'); return ; }; /** * 按钮前进后退处理处理 * 返回:测滑返回,微信返回按钮,web返回按钮,以及android物理返回,android测滑返回 * 前进:微信上的前进按钮,web前进 * // 前进这里有个坑,待解决,先忽略 **/ router.otherEventTransitionName = function (toPath, fromPath) { if (router.customRouterData.transitionName != '') { // 没有数据意味着从,其他操作方式得到的路由变化 return; } let toIndex = router.indexOf(toPath) if (toIndex == -1 || router.customRouterData.history.length - toIndex != 2) { // 不存在,并且历史 router.addRouterPath(toPath) router.customRouterData.transitionName = 'slide_left' } else { router.removeLastRouterPath() router.customRouterData.transitionName = 'slide_right' } } // 是否已经初始化 let isInit = false; // 跳转之前 router.beforeEach((to, from, next) => { if (isInit) { router.otherEventTransitionName(to.path, from.path) } else { isInit = true; router.initRouterPaths(to.path) } next(); }) // 跳转之后 router.afterEach((to, from) => { setTimeout(() => { // 使用动画之后立即移除 router.customRouterData.transitionName = '' }, 300) }) return router } export default transitionExtend

使用

1、对全局router对象进行扩展,一般在router/index.js里面

// 引入扩展函数 import transitionExtend from "./transition-extend"; // 对router对象扩展 router = transitionExtend(router) // export 扩展后的路由对象 export default router

2、为router-view添加过渡动画,一般在app.vue里面

3、现在我们正常使用路由切换就可以看到路由动画了,赶快试试吧。

this.$router.push({ path: '/test' })


原创不易,转载请注明出处,有什么疑问欢迎留言指导。谢谢
