示例

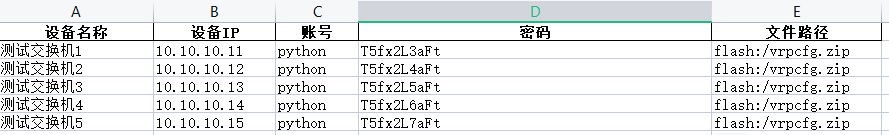

设备信息

​

password_aes.py

#!/usr/bin/env python3 # -*- coding: utf-8 -*- # Linux下和Windows下安装pycryptodome 把读取的xlsx文档的密码进行加密和解密处理 # pip install pycryptodome from Crypto.Cipher import AES from Crypto.Util.Padding import pad from Crypto.Util.Padding import unpad from binascii import b2a_hex, a2b_hex import re class CryptPassword: """ AES.new 初始化AES对象 """ def __init__(self, key, init_vector): """ :param key: 初始化AES加密密钥 AES.new传入参数必须是bytes类型 :param init_vector: 初始化iv偏移量 AES.new传入参数必须是bytes类型 """ self.key = key self.init_vector = init_vector self.mode = AES.MODE_CBC # self.cryptor = AES.new(self.key, self.mode, self.init_vector) # AES加密 待加密的字符串为str类型并返回str类型数据 def encrypt_str(self, pass_str) -> str: # encode('ascii') 字符串转字节串,把字符串:abc,转为字节串：b'abc' cryptor = AES.new(self.key.encode('ascii'), self.mode, self.init_vector.encode('ascii')) # pass_str str类型 pad的data_to_pad必须为bytes类型 故pass_str需要转换为字节串 padtext = pad(pass_str.encode('ascii'), 16, style='pkcs7') # 调用加密方法 cipher_text = cryptor.encrypt(padtext) # 字符串 --> 十六进制 str_cipher = b2a_hex(cipher_text) return str_cipher.decode('ascii') # AES解密 待解密的字符串为str类型并返回str类型数据 def decode_str(self, text_str) -> str: if not CryptPassword.is_hex(text_str) or (len(text_str) < 32): return "错误的16进制加密字符串" else: # 十六进制 --> 字符串 cipher_text = a2b_hex(text_str) decrypter = AES.new(self.key.encode('ascii'), self.mode, self.init_vector.encode('ascii')) # 调用解密方法 plain_text = decrypter.decrypt(cipher_text) # 不够16位，补全到16位 try: unpadtext = unpad(plain_text, 16, 'pkcs7') # decode('ascii') 字节串转字符串,把字节串:b'abc',转为字符串:abc return unpadtext.decode('ascii') except ValueError: return "请输入正确的加密字符串" # 16进制检查 @staticmethod def is_hex(hex_str) -> bool: # 16进制的正则表达式 regex = "[A-Fa-f0-9]+#34; result = re.match(regex, hex_str) if result: return True else: return False # 测试用例 if __name__ == '__main__': key_word = 'QWErtyuio@098765' init_vector_word = 'MEIYuanTian--Xia' password = 'T5fx2L3aFt' data = CryptPassword(key_word, init_vector_word) print(data.encrypt_str(password)) print(CryptPassword.is_hex(data.encrypt_str(password))) text = 'c0cf24e87b328810c0b5711b2f326c8f' print(data.decode_str(text))

configuration_rw.py

#!/usr/bin/env python3 # -*- coding: utf-8 -*- """ 针对yaml/yml等配置文件进行读取和写入的实现类 """ import yaml import os import pathlib class YamlReadWrite: # 初始化 def __init__(self, filepath): self.filepath = filepath def yaml_read(self, file_name): # filename = str(file_name) # print(filename) if os.path.isfile(file_name): with open(self.filepath + '\\' + file_name, 'r', encoding='utf-8') as fp: line_data = yaml.load(fp, Loader=yaml.FullLoader) return line_data else: print("配置文件不存在") def yaml_write(self, file_name, encrypt_str): # 读取yaml文件数据 if os.path.isfile(file_name): old_file_data = YamlReadWrite(self.filepath).yaml_read(file_name) # 修改读取数据 old_file_data['base-info']['is_encrypt'] = encrypt_str with open(self.filepath + '\\' + file_name, 'w', encoding='utf-8') as fp: yaml.dump(old_file_data, fp) return "密码已加密,配置文件加密参数修改为0" else: print("配置文件不存在") if __name__ == '__main__': path = os.path.dirname(__file__) read_data = YamlReadWrite(path).yaml_read(file_name='AutoBakCfg.yml') print(read_data['base-info']['ftp_password']) write_data = YamlReadWrite(path).yaml_write(file_name='AutoBakCfg.yml', encrypt_str='0') print(write_data) print("修改完成")

write_excels.py

#!/usr/bin/env python3 # -*- coding: utf-8 -*- """ 利用pandas模块读写excel文本数据,并对文本数据中的密码进行判断,如果不是16进制字符串,那就进行加密并重新写入,读取16进制字符串解密进行ftp登录 依赖模块: pandas,openpyxl """ import pandas as pd from password_aes import CryptPassword class MachiningText: def __init__(self, xlsx_file_name): self.xlsx_file_name = xlsx_file_name # 更新格式化后的密码并写入xlsx文件中 def write_xlsx_file(self, dev_name, dev_ip, dev_user, dev_pw, file_path): data_df = pd.DataFrame() data_df["设备名称"] = dev_name data_df["设备IP"] = dev_ip data_df["账号"] = dev_user data_df["密码"] = dev_pw data_df["文件路径"] = file_path try: writer = pd.ExcelWriter(self.xlsx_file_name) data_df.to_excel(writer, sheet_name='dev_info', index=False) writer.close() except PermissionError: print("请先关闭文档，再次尝试") def update_password(self, key, init_vector): dev_name = [] dev_ip = [] dev_user = [] dev_pw = [] file_path = [] dev_pd = pd.read_excel(self.xlsx_file_name, sheet_name='dev_info') # 赋予i=0 密码已加密,i=1 把明文密码转为加密密码 i = 0 for line_str in dev_pd.values: dev_name = dev_name + [line_str[0].strip()] dev_ip = dev_ip + [line_str[1].strip()] dev_user = dev_user + [line_str[2].strip()] # try: # dev_pw = dev_pw + [line_str[3].strip()] # except AttributeError: # dev_pw = dev_pw + [line_str[3]] file_path = file_path + [line_str[4].strip()] # 如果密码是单纯的数字 len(123)会出错,需要转换为str类型 try: if int(line_str[3]): password_len = len(str(line_str[3])) passwd_str = str(line_str[3]) if not CryptPassword.is_hex(passwd_str) or (password_len < 32): new_password = CryptPassword(key, init_vector).encrypt_str(passwd_str) # print(new_password) # print(dev_pw) dev_pw = dev_pw + [new_password] i = 1 elif str(line_str[3].strip()): password_len = len(line_str[3].strip()) if not CryptPassword.is_hex(line_str[3].strip()) or (password_len < 32): new_password = CryptPassword(key, init_vector).encrypt_str(line_str[3].encode('ascii')) dev_pw = dev_pw + [new_password] i = 1 else: return "不存在的类型" except ValueError: # 密码不是16进制,则进行加密 password_len = len(line_str[3].strip()) if (not CryptPassword.is_hex(line_str[3].strip())) or (password_len < 32): new_password = CryptPassword(key, init_vector).encrypt_str(line_str[3].strip()) dev_pw = dev_pw + [new_password] i = 1 else: new_password = [line_str[3]] # 如果密码是16进制,new_password 取表中密码,赋予Dev_pw dev_pw = dev_pw + new_password # 密码有加密,则重新写xls表,否则不需要重写 # print(dev_ip) # print(dev_user) # print(dev_pw) # print(file_path) if i == 1: MachiningText(self.xlsx_file_name).write_xlsx_file(dev_name, dev_ip, dev_user, dev_pw, file_path) if __name__ == '__main__': key_word = 'QWErtyuio@098765' init_vector_word = 'MEIYuanTian--Xia' MachiningText(r'./dev_info.xlsx').update_password(key_word, init_vector_word) print("完成")

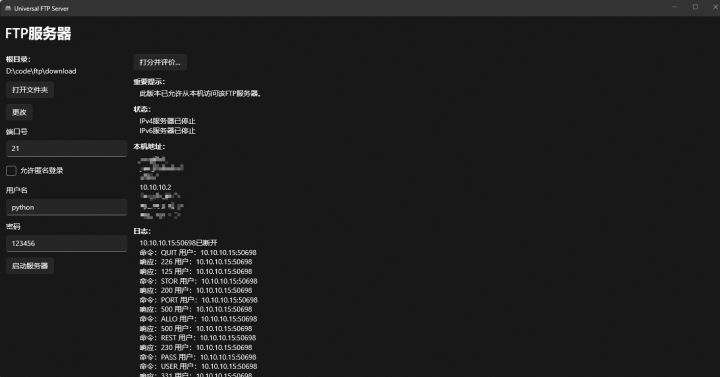

ftp_server.py

#!/usr/bin/env python3 # -*- coding: utf-8 -*- # 模拟客户端进行FTP服务器验证 import ftplib import utils class FTPServer: def __init__(self, ftp_server): self.ftp_server = ftp_server def connect_ftp_server(self, ftp_user, ftp_password) -> bool: print("正在检测FTP服务器，请稍候......") try: ftp = ftplib.FTP(self.ftp_server) print(ftp.getwelcome()) ftp.login(ftp_user, ftp_password) ftp.encoding = 'utf-8' # 230 Logged in 230代表登录成功 login_response = ftp.login(ftp_user, ftp_password) # 通过指定分隔符对字符串进行切片 login_response.split(" ")[0] if int(login_response.split(" ")[0]) == 230: print("FTP服务器登陆成功！") utils.writelog("FTP服务器登陆成功！\n") return True else: return False except ConnectionRefusedError: print("FTP服务器无法登录，请检查服务是否启动！") utils.writelog("FTP服务器无法登录，请检查服务是否启动！\n") return False if __name__ == '__main__': user = 'python' password = '123456' server = '10.10.10.2' FTPServer(server).connect_ftp_server(user, password) print("完成")

utils.py

#!/usr/bin/env python3 # -*- coding: utf-8 -*- # 代码运行日志生成器 import datetime import msvcrt def writelog(logstr): try: f = open('./result.log', 'a') out = f.write(str(datetime.datetime.now()) + ":-->" + logstr) f.close() return out except Exception as _result: return print(_result) # 如果不打包exe不需要 借鉴前人经验 def prompt_msg(tmep_str): print("------------------------------------------------------------------") print("如发现程序有问题，请联系作者，QQ：1450561049@qq.com\n") print("按任意键退出......") print("------------------------------------------------------------------") return ord(msvcrt.getch())

run_backup.py

#!/usr/bin/env python3 # -*- coding: utf-8 -*- # 利用paramiko进行网络设备ssh连接和备份命令操作 from configuration_rw import YamlReadWrite from write_excels import MachiningText from ftp_server import FTPServer from password_aes import CryptPassword import pandas as pd import paramiko import time import utils import os def connect_device_ssh(dev_name, dev_ip, dev_username, dev_pw, filename_path): try: # 创建一个SSH客户端 ssh_client = paramiko.SSHClient() # AutoAddPolicy: 自动添加主机名和主机密钥 # set_missing_host_key_policy: 一个连接主机的策略（没有本地主机秘钥或者HostKeys对象时） ssh_client.set_missing_host_key_policy(paramiko.AutoAddPolicy()) ssh_client.connect(hostname=dev_ip, port=22, username=dev_username, password=dev_pw) # 打开连接到的终端,使用ssh shell通道,相当于使用ssh远程到了主机上 command = ssh_client.invoke_shell() # send发送内容，然后将字符串进行编码，编码后中文仍乱码 command.send(("ftp " + _FTP_HOST).encode()) command.send(b"\n") command.send(_FTP_USER + "\n") time.sleep(1) command.send(_FTP_PW + "\n") time.sleep(1) command.send(b"\n") time.sleep(1) command.send(b"\n") # 备份flash:/vrpcfg.zip,并提取配置名称 cfg_name = filename_path.split("/")[1].split(".") expanded_name = "." + cfg_name[1] # 拼接备份文件名称 bak_file_name = cfg_name[0] + "-" + dev_ip + "-" + time.strftime("%Y-%m-%d") + expanded_name # print (Bak_File_Name) command.send("put " + filename_path + " " + bak_file_name + "\n") # print("put " + filename_path + " " + Bak_File_Name + "\n") time.sleep(1) command.send(b"\n") received = command.recv(65535).decode() # 备份成功recv 包含“226 File received ok” if "226 File has been recieved" in received: print(dev_name + "_" + dev_ip + "-" + filename_path + " --> 备份成功！") utils.writelog(dev_name + "_" + dev_ip + "-" + filename_path + " --> 备份成功！\n") ssh_client.close() except: print(dev_name + "_" + dev_ip + "-" + filename_path + " --> 备份失败。") utils.writelog(dev_name + "_" + dev_ip + "-" + filename_path + " --> 备份失败。######\n") # recv = command.recv(65535).decode() # recv接收响应，字节为65535，并进行解码 # result = recv.splitlines() # print(recv) if __name__ == '__main__': # key: 16或16的倍数 key = 'QWErtyuio@098765' # init_vector: 16位 init_vector = 'MEIYuanTian--Xia' # 读取程序当前目录路径 path = os.path.dirname(__file__) read_data = YamlReadWrite(path).yaml_read(file_name='AutoBakCfg.yml') if os.path.exists('./result.log'): os.remove('./result.log') # 私有常量 _IS_ENCRYPT = int(read_data['base-info']['is_encrypt']) _FTP_HOST = read_data['base-info']['ftp_server'] _FTP_USER = read_data['base-info']['ftp_user'] _FTP_PW = read_data['base-info']['ftp_password'] # _IS_ENCRYPT = 1, 把'./dev_info.xlsx中密码字段的明文密码改为密文（AES） if _IS_ENCRYPT == 1: xlsx_file_name = r'./Dev_info.xlsx' MachiningText(xlsx_file_name).update_password(key, init_vector) # 加密后把 _IS_ENCRYPT = 0 YamlReadWrite(path).yaml_write(file_name='AutoBakCfg.yml', encrypt_str='0') utils.writelog("把当前明文密码修改成功为密文密码并更改配置文件为is_encrypt参数为0") else: utils.writelog("dev_info.xlsx文件中密码字段已加密！") print("dev_info.xlsx文件中密码字段已加密！") if FTPServer(_FTP_HOST).connect_ftp_server(_FTP_USER, _FTP_PW): dev_file_name = './dev_info.xlsx' dev_pd = pd.read_excel(dev_file_name, sheet_name='dev_info') dev_info = dev_pd.values # Dev_Info.head() for line_str in dev_info: # print(line_str[0], line_str[1], line_str[2], line_str[3], line_str[4]) dev_name_str = line_str[0] dev_ip_str = line_str[1] dev_username_str = line_str[2] dev_pw_str = CryptPassword(key, init_vector).decode_str(line_str[3]) # print (PassWord) filename_path_str = line_str[4] connect_device_ssh(dev_name_str, dev_ip_str, dev_username_str, dev_pw_str, filename_path_str) # prompt_msg("备份完成,备份文件保存在FTP服务器的目录下") utils.writelog("备份完成,备份文件保存在FTP服务器的目录下") else: # prompt_msg("连接FTP服务器失败，请检查FTP服务是否启动，服务器IP，账号、密码是否正确。") utils.writelog("连接FTP服务器失败，请检查FTP服务是否启动，服务器IP，账号、密码是否正确。")

目前代码仅仅是刚刚成型，发现bug的地方还请评论反馈。

利用paramiko进行连接，可以对华为和华三的网络设备配文件进行自动化备份。后续将使用netmiko进行重构，添加对其他厂商网络设备的支持。

后续将重构和分享项目中使用到的模块和基础知识，以实践来驱动知识的学习和巩固，欢迎有兴趣的小伙伴一起加入，可新建一个群进行共同探讨。

再次感谢各位开源贡献者们和免费分享NetDevOps相关技术的前辈们，如 @弈心 @朱嘉盛 以及整个圈子的大佬们的分享。
